+# Beginning ARKit
+[Beginning ARKit](https://www.raywenderlich.com/737368-beginning-arkit/) from [https://raywenderlich.com](https://raywenderlich.com).
+
+## Git rid of "SpaceShip", and draw first object
+
+- In viewDidLoad: delete everything after showsStatistics
+- In viewDidLoad:
+
+```swift
+    sceneView.debugOptions = [ARSCNDebugOptions.showWorldOrigin, ARSCNDebugOptions.showFeaturePoints]
+    sceneView.autoenablesDefaultLighting = true
+```
+
+- create new func after viewWillDisappear:
+
+```swift
+    func drawSphereAtOrigin() {
+        let sphere = SCNNode(geometry: SCNSphere(radius: 0.05))  // (all objects are nodes)
+        sphere.geometry?.firstMaterial?.diffuse.contents = UIColor.blue
+        sphere.position = SCNVector3(0,0,0)
+        sceneView.scene.rootNode.addChildNode(sphere)
+    }
+```
+
+- call drawSphereAtOrigin() at end of viewWillAppear()
+
+See:
+- axis (red is X, blue Z, yellow Y) at origin
+- yellow dots are "feature points" (points that are probably part of a surface, but not a plane)
+
+## Modifying the sphere
+
+Colors that we see are *reflected* light.
+- Matte surfaces give off "diffuse" reflection (sent in all directions), also called "color intensity".
+- *Specular* reflection is that which bounces right back, the "shiny highlights".

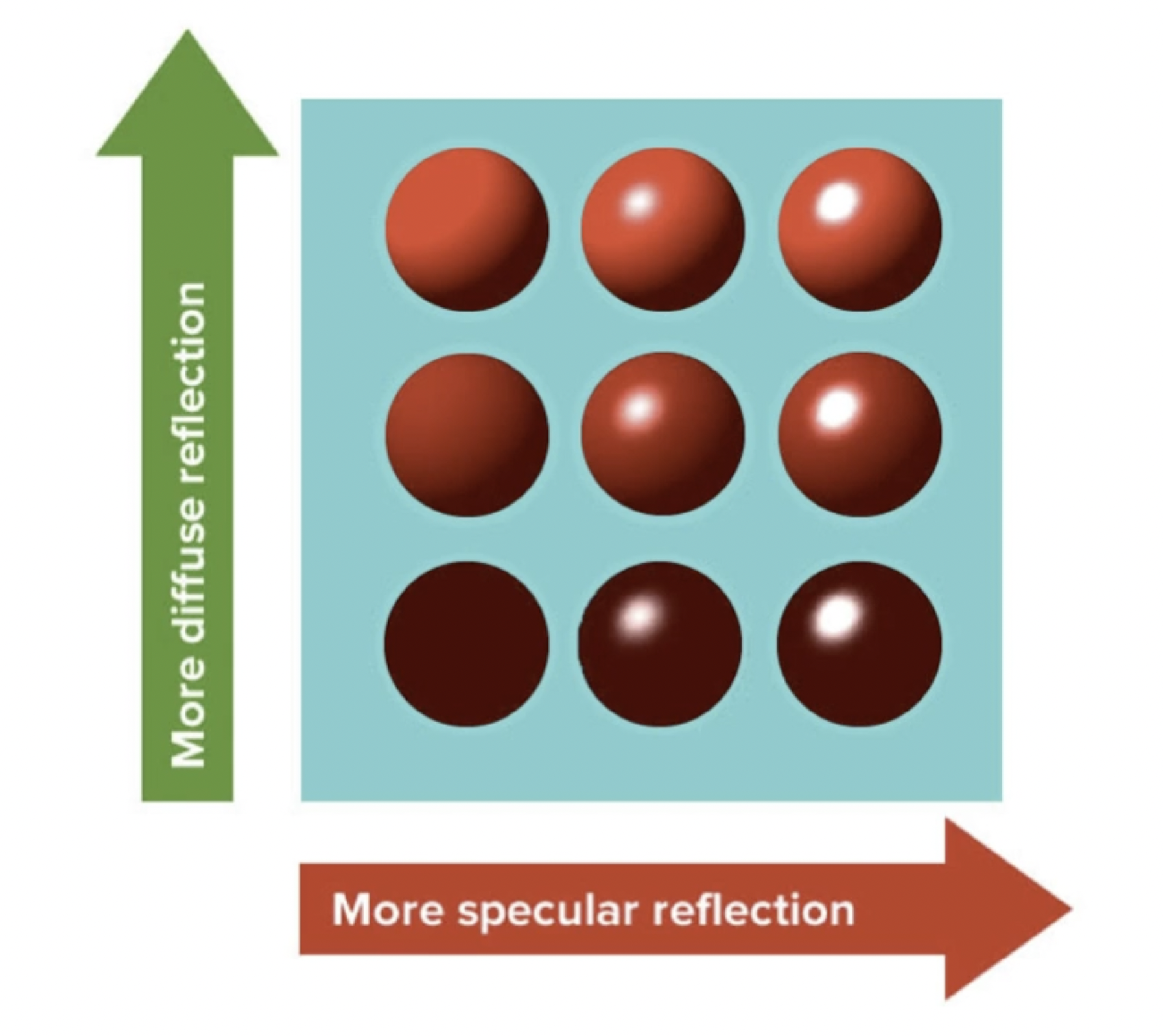

+![light](arDiffuseVsSpecular.png)
+
+Create an orange square at 12 o'clock position, a bit higher and
+behind origin (20 cm above origin, 30 cm behind, 10 cm in
+size). Orange w/ white highlights:
+
+```swift
+   func drawBox() {
+        let box = SCNNode(geometry: SCNBox(width: 0.1, height: 0.1 , length: 0.1, chamferRadius: 0.0))
+        box.position = SCNVector3(0, 0.2, -0.3)
+        box.geometry?.firstMaterial?.diffuse.contents = UIColor.orange
+        box.geometry?.firstMaterial?.specular.contents = UIColor.white
+        sceneView.scene.rootNode.addChildNode(box)
+   }
+```
+
+Notes:
+- *chamfer radius* is roundness of corners.
+- source of virtual light is phone
+
+## A Pyramid
+
+30 cm in front, 20 below, 10 cm all dimensions, green w/ red highlights:
+
+```swift
+    func drawPyramidAt600Low() {
+        let pyr = SCNNode(geometry: SCNPyramid(width: 0.1, height: 0.1, length: 0.1))
+        pyr.geometry?.firstMaterial?.diffuse.contents = UIColor.green
+        pyr.geometry?.firstMaterial?.specular.contents = UIColor.red
+        pyr.position = SCNVector3(0, -0.2, 0.3)
+        sceneView.scene.rootNode.addChildNode(pyr)
+    }
+```
+
+# Draw a cat
+
+- use images instead of flat
+- add cat, earth picture assets
+- define the following at bottom of file:
+- 10 cm plane at 9 o'clock
+- 20 cm left
+- painted w/ cat
+
+```swift
+    func drawCat() {
+        let cat = SCNNode(geometry: SCNPlane(width: 0.1, height: 0.1))
+        cat.geometry?.firstMaterial?.diffuse.contents = UIImage(named: "cat")
+        cat.geometry?.firstMaterial?.isDoubleSided = true
+        cat.position = SCNVector3(-0.2, 0, 0)
+        sceneView.scene.rootNode.addChildNode(cat)
+    }
+```
+
+and then
+
+```swift
+        cat.geometry?.firstMaterial?.isDoubleSided = true
+```
+
+Use euler angles:
+- rotation around x axis ("pitch")
+- rotation around y axis ("yaw")
+- rotation around z axis ("roll")

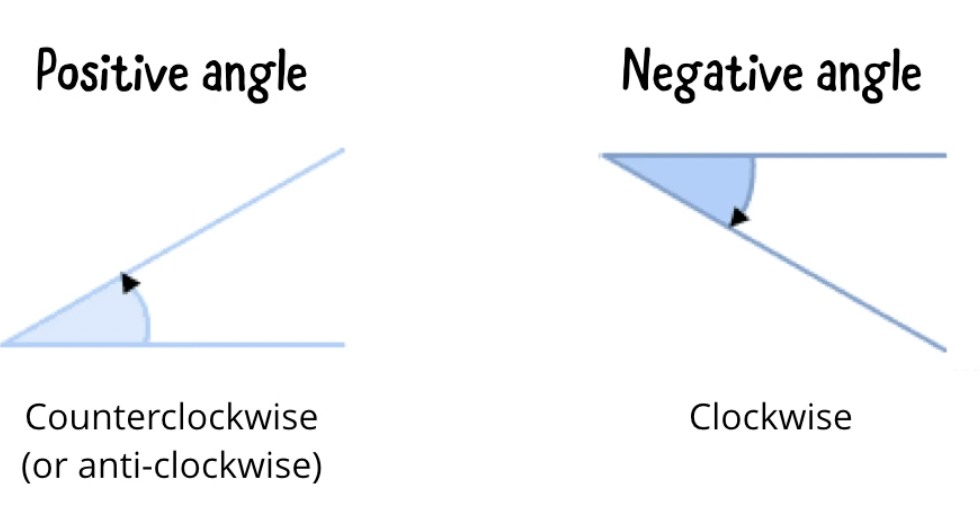

+![rotation](arRotationAngles.png)
+
+Convention is that positive rotation is counter-clockwise
+- and in radians
+- rotate 45 clockwise around x, 20 counter y, 45 countercl z
+
+```swift
+extension Int {
+    func degRadians() -> CGFloat {
+        return CGFloat(self) * CGFloat.pi / 180
+    }
+}
+```
+
+And then:
+```swift
+        cat.eulerAngles = SCNVector3(-45.degreesToRadians(), 20.degreesToRadians(), 45.degreesToRadians())
+```
+
+- repaint earth to look like sphere, give it yellow highlights
+
+```swift
+    func drawSphereAtOrigin() {
+        let sphere = SCNNode(geometry: SCNSphere(radius: 0.05))
+        sphere.geometry?.firstMaterial?.diffuse.contents = UIImage(named: "earth")
+        sphere.geometry?.firstMaterial?.specular.contents = UIColor.yellow
+        sphere.position = SCNVector3(0,0,0)
+        sceneView.scene.rootNode.addChildNode(sphere)
+    }
+```
+
+
+Add torus at 3 o'clock, red, w/ white highlights
+- a large ring, pipe encircles ("ring radius", "pipe radius")
+
+```swift
+    func drawDonut() {
+        let donut = SCNNode(geometry: SCNTorus(ringRadius: 0.05, pipeRadius: 0.03))
+        donut.geometry?.firstMaterial?.diffuse.contents = UIColor.red
+        donut.geometry?.firstMaterial?.specular.contents = UIColor.white
+        donut.position = SCNVector3(0.2,0,0)
+        donut.eulerAngles = SCNVector3(0,0,45.degRadians())
+        sceneView.scene.rootNode.addChildNode(donut)
+    }
+```
+
+## Actions
+
+"actions" are objects you can use to make changes to scenekit objects
+ - rotating, growing/shrinking
+
+```swift
+        let rotate = SCNAction.rotate(by: 360.degreesToRadians(), around: SCNVector3(0,1,0), duration: 8)
+        sphere.runAction(rotate)
+```
+
+can affect other actions:
+- multiple in parallel
+- sequence
+- repeat *n* times
+- repeat indefinitely

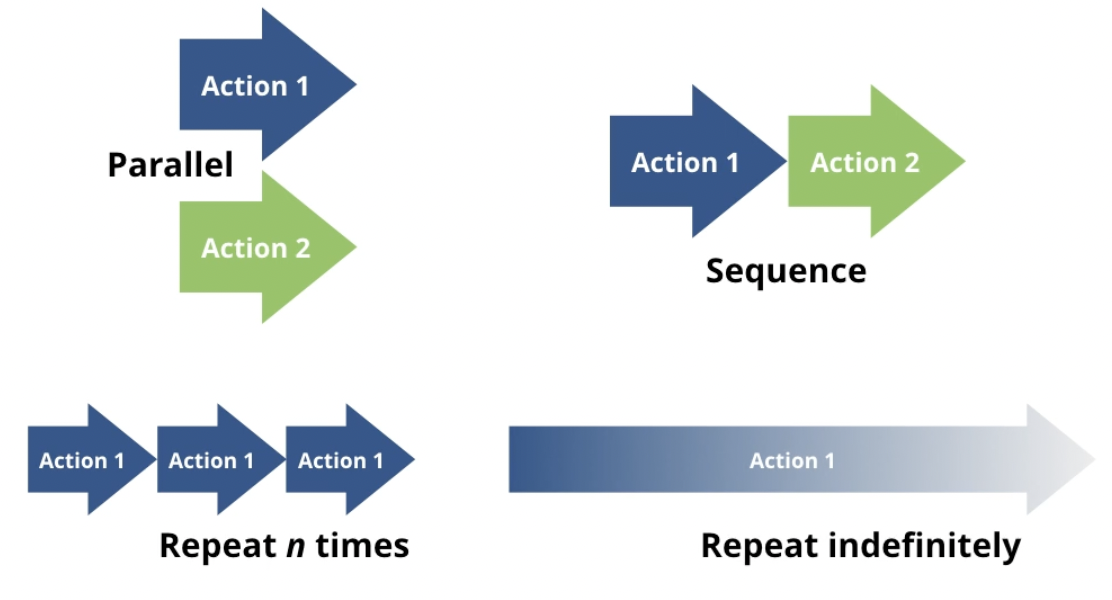

+![actions](arActions.png)
+
+### Spin Earth
+
+```swift
+        let rotate = SCNAction.rotate(by: 360.degreesToRadians(), around: SCNVector3(0,1,0), duration: 8)
+        let rotateForever = SCNAction.repeatForever(rotate)
+```
+
+## The "SpaceShip"
+
+The ARkit's *scene  object*:
+  - virtual world overlaying real world
+  - we have been adding objects by adding them to the scene in the ar scenekit view
+  - "there is another"
+
+Another scene: "art.ship":
+- originally loaded into the scene object of the ar scenekitview at the beginning
+
+We can add it to ours by extracting it from a scene file and adding to the scene object of AR scenekit view
+- load into placeholder scene object,
+- use childNode (withName) recursively to find it
+
+
+Use by:
+- make the `sphere` variable global to the view:
+  - `var sphere = SCNNode()` before ViewDidLoad
+- remove "let" of sphere property in the func
+
+## The "SpaceShip" Orbits
+- get the scene containing the ship
+- splat it 1 meter right of origin by adding to Earth
+- scale down to 1/3 size
+
+```swift
+    func drawShip() {
+        let scene = SCNScene(named: "art.scnassets/ship.scn")!
+        let ship = (scene.rootNode.childNode(withName: "ship", recursively: false))!
+        ship.position = SCNVector3(1, 0, 0)
+        ship.scale = SCNVector3(0.3, 0.3, 0.3)
+        ship.eulerAngles = SCNVector3(0, 180.degreesToRadians(), 0)
+        sphere.addChildNode(ship)
+    }
+```
+
+Use Euler angles to make it face forwards.
+
+
