assign1/README.md

+# Assignment 1: Swift and Extensions
+
+## Goals
+The primary goal of this project is to to familiarize yourself with
+the environment and the language. All in this class will be written
+in Swift 5.5, using XCode 12 or later as your friendly development
+environment.  *Errors resulting from development in different
+environments still result in loss of points.*
+
+Specifically, you will create an application having a model that emulates the logic of the 2048
+   app [here](https://play2048.co/) in a SwiftUI app, though we won't actually
+   build a GUI at all. Your app will do nothing when run, but does
+   include the app's
+   model and unit tests with which to test your model.
+
+In the process you will obviously learn quite a bit about the `XCode`
+environment, about unit tests in the context of Swift applications,
+and about defining type extensions.
+
+## Using git
+You will submit your assignment solution through git. Clone your
+repository from `gitlab.cs.umd.edu` as follows:
+```
+    git clone git@gitlab.cs.umd.edu:cmsc436Fall2021/cmsc436-<dirid>
+```
+with your directoryID substituted for "<dirid>" above. This is the ssh
+version of git clone, which assumes you've uploaded an ssh key for
+your machine. Otherwise you can use:
+```
+    git clone https://gitlab.cs.umd.edu/cmsc436Fall2021/cmsc436-<dirid>
+```
+
+Email me directly (w/ "436" in the subject) if your repository does
+not seem to exist.
+
+Create the new project `assign1` in your repository. Always close the
+project first before pushing back to gitlab. The first time you create
+the project, cd into the repository and then push the new project back
+to gitlab.
+
+For example, close the repository (w/ my dirid just as an example),
+like the following:
+```
+    git clone git@gitlab.cs.umd.edu:cmsc436Fall2021/cmsc436-keleher
+```
+
+Create the new `assign1` project inside cmsc436-keleher, create a new
+`model.swift` in the project to define your model, update the unit
+tests via the link below, and perform the following for your first
+commit:
+```
+    cd cmsc436-keleher
+    git add assign1
+    git commit -a -m auto
+    git push origin master
+```
+
+
+You should add, commit, and push frequently,
+so that:
+ 1. you do not lose work, and
+ 2. we can help answer your questions by looking at your code.
+
+**Important:**  Test that your project create and push to the
+  repository is correct by cloning it to a separate, throwaway
+  location. Open this throwaway version and verify that it works the
+  same way as your primary copy. If it doesn't, you probably did not
+  *add* all the files in your project. Do this manually and try again.
+
+
+
+
+# Building An App
+We are going to build an apple called `Triples` in two or three
+stages. In the first stage, we are just going to design and implement
+the model, and unit-test it.
+
+As we did in class, you will create a new SwiftUI iOS app:
+- Create a new project in XCode and save to your `cmsc436-<dirid>` directory.
+- When creating the project:
+  - also call it `assign1`
+  - **check** "unit tests", **uncheck** `git`, **uncheck** UI tests
+    (not fatal, but the `Test` command from the `Product` menu will
+    fail because it will try to test your GUI, and you don't have one.
+  - select a "single-view" iOS app even though we will not have any graphical
+    characteristics
+- Create a new file `model.swift` to implement the `Twos` class in
+your app by selecting "New / File"
+from the File menu, selecting the Swift file icon in the dialog, and
+then naming it `model.swift`.  `model.swift` will contain the "model" known
+from the model-view-controller (MVC) or model-view-viewmodel paradigms.
+- Copy and paste the code in [assign1Tests.swift](assign1Tests.swift) verbatim over the default version.
+

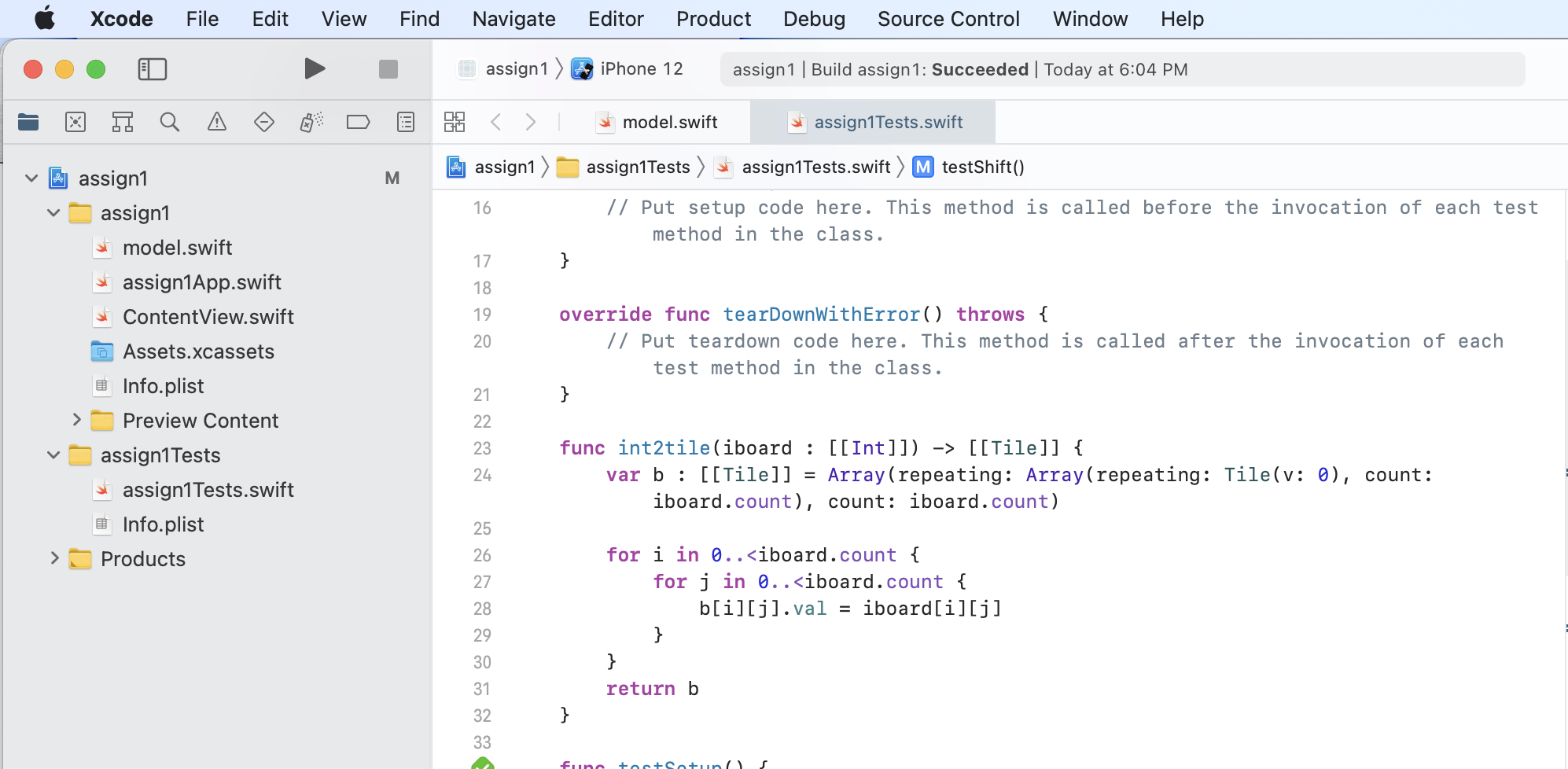

+Your file structure should look like the following: ![xcode.png](xcode.png)
+
+## App Logic
+Our game action will be similar to the app `2048` on the apple
+and android app stores. Game-play should be as on the
+[website](https://play2048.co/).
+
+
+## Your Tasks
+Your tasks are to implement the *model* of the game. Specifically, you will implement the "collapse", which
+given a swipe in a direction collapses each row or column parallel
+to the swipe by:
+- eliminating any blanks, and
+- performing a single pass over each row/col in the reverse of the
+swipe and combining consecutive individual values into a single value
+twice as large
+Note that a "swipe" can also be performed in a variety of other ways,
+for now we will do it using on-screen buttons.
+
+For more specifics, see the tests described below.
+
+## The `Twos` Class
+
+In the file `model.swift` you will define a new class `Twos` to
+implement the gameplay model and
+implements the methods discussed below.
+`Twos` will need the following definitions:
+```
+    struct Tile {
+        var val : Int
+        var lastRow = 0, lastCol = 0
+        init(v: Int) {
+            val = v
+        }
+    }
+
+    enum Direction {
+       case left
+       case right
+       case up
+       case down
+	}
+    var board: [[Tile]]                                // must be init'd, but contents overwritten
+```
+and functions:
+```
+    // primitive functions
+    public func rotate2DInts(input: [[Int]]) ->[[Int]] // rotate a square 2D Int array clockwise
+    public func rotate2D<T>(input: [[T]]) ->[[T]]      // generic version of the above
+
+	// high-level functions
+    func shiftLeft()                                   // collapse to the left
+    func rightRotate()                                 // define using only rotate2D
+    func collapse(dir: Direction)                      // collapse in direction "dir" using only
+                                                       // shiftLeft() and rightRotate()
+
+```
+Note that methods merely *modify* the `board` property. We are not
+taking any actions based on the board, or doing any GUI work at
+all.
+
+A `Tile` is a simple structure containing a `val` (the value of the
+tile) and additional `Int` fields `lastRow` and `lastCol`.  You will
+need to ensure that `Tile` conforms to the `Equatable` protocol.
+
+You **must** define and use the generic function `rotate2D()` to get
+any credit, do not define a `Tile`-specific version of rotate or use
+`rotate2DInts` at all in the `collapse()` function.
+
+
+### testing
+
+The provided copy of `assign1Tests.swift` should have been copied
+**unaltered** into your project. Test your project by
+running this set of tests by clicking "Test" in the "Products" menu, or
+clicking in the margin next to `class assign1Tests: XCTestCase`, or in
+the margin next to the individual tests.
+
+
+# Submit, and Grading
+Submit by pushing your project to your repository. **Check this**
+by visiting your repository in a web browser at
+`https://gitlab.cs.umd.edu/cmsc436-marsh/students/<dirid>/assign1`
+
+Each of the eight tests is worth 1 point. There is no partial
+credit. You will not get credit if you:
+- modify `assign1Tests.swift` in any way
+- do not define `rightRotate()` and `collapse()` as specified above
+- define a `Tile`-specific version of rotate.
+
+
+
+# Notes
+- Remember, frequently save your work on gitlab.  You can push your
+  work as many times as you wish. We will download
+  your repository from gitlab directly after the deadline.
+

assign1/assign1Tests.swift

+//
+//  assign1Tests.swift
+//  assign1Tests
+//
+//  Created by Pete Keleher on 2/2/20.
+//  Updated by Shoumit Karnik on 1/20/21.
+//  Copyright © 2020 PeteWorks. All rights reserved.
+//
+
+import XCTest
+@testable import assign1
+
+class assign1Tests: XCTestCase {
+
+    override func setUpWithError() throws {
+        // Put setup code here. This method is called before the invocation of each test method in the class.
+    }
+
+    override func tearDownWithError() throws {
+        // Put teardown code here. This method is called after the invocation of each test method in the class.
+    }
+
+    func int2tile(iboard : [[Int]]) -> [[Tile]] {
+        var b : [[Tile]] = Array(repeating: Array(repeating: Tile(v: 0), count: iboard.count), count: iboard.count)
+
+        for i in 0..<iboard.count {
+            for j in 0..<iboard.count {
+                b[i][j].val = iboard[i][j]
+            }
+        }
+        return b
+    }
+
+    func testSetup() {
+        let game = Twos()
+        XCTAssertTrue((game.board.count == 4) && (game.board[3].count == 4))
+    }
+
+    func testRotate1() {
+        var board = [[0,3,3,3],[1,2,3,3],[0,2,1,3],[3,3,6,6]]
+        board = rotate2DInts(input: board)
+        XCTAssertTrue(board == [[3,0,1,0],[3,2,2,3],[6,1,3,3],[6,3,3,3]])
+    }
+
+    func testRotate2() {
+        var board = [["0","3","3","3"],["1","2","3","3"],["0","2","1","3"],["3","3","6","6"]]
+        board = rotate2D(input: board)
+        XCTAssertTrue(board == [["3","0","1","0"],["3","2","2","3"],["6","1","3","3"],["6","3","3","3"]])
+    }
+
+    func testShift() {
+        let game = Twos()
+        game.board = int2tile(iboard: [[0,2,2,2],[4,2,4,4],[0,8,2,4],[0,0,4,4]])
+        game.shiftLeft()
+        XCTAssertTrue(game.board == int2tile(iboard: [[4,2,0,0],[4,2,8,0],[8,2,4,0],[8,0,0,0]]))
+    }
+
+    func testLeft() {
+        let game = Twos()
+        game.board = int2tile(iboard: [[0,2,2,2],[4,2,4,4],[0,8,2,4],[0,0,4,4]])
+        game.collapse(dir: .left)
+        XCTAssertTrue(game.board == int2tile(iboard: [[4,2,0,0],[4,2,8,0],[8,2,4,0],[8,0,0,0]]))
+    }
+
+    func testRight() {
+        let game = Twos()
+        game.board = int2tile(iboard: [[0,2,2,2],[4,2,4,4],[0,8,2,4],[0,0,4,4]])
+       game.collapse(dir: .right)
+        XCTAssertTrue(game.board == int2tile(iboard: [[0,0,2,4],[0,4,2,8],[0,8,2,4],[0,0,0,8]]))
+
+    }
+
+    func testDown() {
+        let game = Twos()
+        game.board = int2tile(iboard: [[0,2,2,2],[4,2,4,4],[0,8,2,4],[0,0,4,4]])
+        game.collapse(dir: .down)
+        XCTAssertTrue(game.board == int2tile(iboard: [[0,0,2,0],[0,0,4,2],[0,4,2,4],[4,8,4,8]]))
+    }
+
+    func testUp() {
+        let game = Twos()
+        game.board = int2tile(iboard: [[0,2,2,2],[4,2,4,4],[0,8,2,4],[0,0,4,4]])
+        game.collapse(dir: .up)
+        XCTAssertTrue(game.board == int2tile(iboard: [[4,4,2,2],[0,8,4,8],[0,0,2,4],[0,0,4,0]]))
+    }
+
+}
