+# Highly Available
+
+```
+ authors: Peter Bailis, Alan Fekete, Ali Ghodsi, Joseph M. Hellerstein, Ion Stoica
+    title: "HAT, not CAP: Towards Highly Available Transactions"
+    where: HotOS 2013
+```
+
+### Definitions, in the context of Partitions:
+
+- **high availability:**
+  - each user that can contact a non-failing server eventually receives
+    response, even in presence of arb long partitions
+- **sticky availability:**
+  - whenever client accesses copy that reflects all prior operations,
+    eventually receives a response
+- **transactional replica availability:**
+  - if T can contact at least one replica for each item
+- **aborts:**
+    - internal
+    - external (due to system or operation impl)
+"**dirty reads**"
+- reading uncommitted
+```
+     T1: wx(1) wx(2) commit
+     T2: wx(3)
+     T3: rx(?)
+```
+Read should not ever return '1', and shouldn't return '3' if T2 aborts
+
+"**dirty writes**"
+A *dirty write* occurs when one transaction overwrites a value that has previously been
+written by another still in-flight transaction. Why bad? Could violate consistency
+guarantees. Assume invariant *x == y*:
+```
+     T1: wx(1)            wy(1)
+     T2:      wx(2) wy(2)
+```
+Both preserve consistency in isolation, but not w/ this schedule and dirty writes.
+
+
+## Isolation guarantees:
+
+"**read uncommitted**" (PL-1)
+- writes to each obj totally ordered (prohibits dirty writes)
+- writes *across* objects consistently ordered
+- implement w/ per-trans time, *last-writer-wins*
+
+"**read committed**" (PL-2)
+- no dirty writes, reads
+- implement w/ buffers (though doesn't guarantee recency)
+
+"**repeatable read**"  (cut (*snapshot*) isolation)
+- item cut iso (multiple different values): buffer reads
+- predicate cut iso   (cut over "SELECT ..WHERE....")
+- impl both w/ buffering
+
+----
+### Unachievable isolation levels
+- snapshot isolation,
+  - read from consistent cut
+  - commit only if items from writeset not committed by another T since snapshot
+  - partition either delays or suffer lost updates
+- cursor stability
+  - means DB holds lock on a row while accessing, and no other T can
+    access it during this time, repeatable read often means holding lock
+    on entire set of results
+  - violated if lost writes because of locks not reaching across partition.
+  - therefore not HAT (because can't prevent lost updates)
+----
+### Unachievable properties
+- preventing lost updates
+```
+     lost update (a==1) -
+     T1: Rx(100), Wx(100+20=120)
+     T2: Rx(100), Wx(100+30=130)
+```
+  Final value should be 150. Lost update would be 120 or 130.
+  W/ partition, T1 and T2 might not see each other, hence lost update.
+
+  *Clearly impossible to prevent in dist environment.*
+
+- preventing write skew.  Write Skew generalizes LU to multiple keys. Possible problem is
+violation of consistency, such as "x == y""
+```
+     T1: t = x;  y = t
+     T2: t = y;  x = t
+```
+Can happen w/ snapshot isolation.
+
+- Serializability:
+  - optimistic requires global validation
+  - pessimistic requires global coord/locking
+
+
+
+- Katura not buying sticky avail (definitional)
+- Nao -  "really confusing"  (yes)
+- Patrick/Andrew - causal only w/ sticky (client caching breaks lots of guarantees)
+
+
+
+----
+
+### HAT-compliant:
+
+![pic](hat.png)
+
+----
+
+# SALT
+
+"offering atomicity and isolation at the same granularity is the very reason why ACID
+transactions are ill-equipped .....(performance vs programmability)"
+
+**Pareto Principle:** 80% of effects from 20% of causes
+
+-splitting ACID transactions up very good for concurrency
+ - bad for isolation
+- key issue is to provide isolation at a finer granularity, same atomicity
+  - nested transactions give subtrans' atomicity, isolate entire thing
+
+
+ *Allow isolation to be specified at smaller granularity than atomicity*
+
+## Background
+
+ANSI iso levels:
+- read-uncommitted
+- read-committed (assumed goal for paper)
+- repeatable read
+- serializable
+
+Issues:
+- dirty writes: overwrite uncomitted
+- dirty reads: read from uncommitted
+- non-repeatable reads
+- phantom
+
+## Big Things
+- BASE transactions
+- salt isolation
+- clever names
+
+## BASE transactions
+  - **alkaline** subtransactions
+    - no other transactions can see state of *uncommitted alkaline subtrans*
+    - **committed** alk subtrans state viewable by other BASE or alkaline transactions
+    - *not visible* to ACID until entire BASE commit.
+	- intended for *partition-local* ops
+  - **salt isolation** allows control of internal states visibility (among other BASE transactions)
+  - each alkaline sub has associated *exception*
+  - *BASE transactions look like ACID transactions to other ACID transactions*
+  - **accepted** once any alkaline trans commits,
+    - accepted implies commit of entire BASE
+    - i.e. all operations successfully executed *or bypassed because of some exception*
+  - aborted only if they encounter an error before the transaction is accepted (unlike ACID)
+
+## Salt Isolation
+
+*"If two operations in different transactions conflict, then the temporal dependency
+    that exists between the earlier and the later of these operations  must extend to the
+    entire transaction"* (allows SALT to work w/ different isolation levels)
+
+*Isolation:* Let Q be the set of operation types {*read*, *range-read*, *write*} and let L and S
+be subsets of Q . Further, let *o<sub>1</sub>* in *txn<sub>1</sub>* and *o<sub>2</sub>* in *txn<sub>2</sub>*, be two operations, respectively
+of type *T<sub>1</sub>* ∈ L and *T<sub>2</sub>* ∈ S , that access the same object in a conflicting
+(i.e. non read-read) manner. **If *o<sub>1</sub>* completes before *o<sub>2</sub>* starts, then *txn<sub>1</sub>* must decide
+before *o<sub>2</sub>* starts.**
+
+<img src=saltSets.png width=500>
+
+The Isolation property holds as long as (a) at least one of txn<sub>1</sub> and
+txn<sub>2</sub> is an ACID transaction or (b) both txn<sub>1</sub> and txn<sub>2</sub> are alkaline
+subtransactions.
+
+So:
+- ACID transactions isolated from all other
+- Alkaline subtrans isolated from ACID and other alkaline
+- BASE expose states at alkaline boundaries to other BASE
+
+
+- Design
+  - locks (because high contention)
+    - type
+      - ACID - conflict with alkaline and saline
+      - alkaline - conflict w/ ACID and other alkaline
+      - saline: conflict with ACID locks (except for read/read) only
+    - lock duration
+      - *long term* (life of (sub-)trans, 2PL)
+      - *short-term* (just the op)
+    - acquire only an alkaline lock at operation start
+      - “downgrade” it to saline at end of subtransaction, hold until after the end of the BASE transaction.
+  - no multi-version concurrency
+
+![sets](saltConcurrent.png)
+
+## Indirect Dirty Reads
+<p>
+
+![fig4](saltFig4.png)
+<p>
+Fixed by:
+
+- **Read-after-write across transactions** A BASE transaction *B<sub>r</sub>* that reads a value x, which has been written by another *BASE<sub>w</sub>* transaction, cannot release its saline lock on x until *B<sub>w</sub>* has released its own saline lock on x.
+
+- **Write-after-read within a transaction** An operation *O<sub>w</sub>* that writes a value x cannot
+  release its saline lock on x until all previous read operations within the **same** BASE
+  transaction have released their saline locks on their respective objects.
+
+These two ensure uncommitted writes keep locks until all prior read locks also released.
+
+<p>
+
+## Forward Logging
+- after BASE knows it will commit (because a subsaline committed), log entire BASE
+- prevents cascades that would have occurred because of saline visibility
+
+### Banking, again
+
+![fig1](saltAcidApp.png)
+![banking](saltBanking.png)
+
+## Performance
+
+![saltPerf1](saltPerf1.png)
+
+![saltPerf2](saltPerf2.png)
+
+
+## Comments
+
+
+
+
+//=====================================================================
+
+# Correctness Anomalies Under Serializable Isolation
+
+Background: serializability guarantees an execute (a schedule)
+equivalent to a serial schedule, but this serial schedule does not
+have to be the ordering that actually occurred in real time (wall
+clock time).
+
+Background: *one-copy serilizability* (1SR):
+```
+...either ... will be ordered first in the equivalent serial order. Whichever transaction is second --- when it reads the balance --- it must read the value written by the first transaction
+```
+

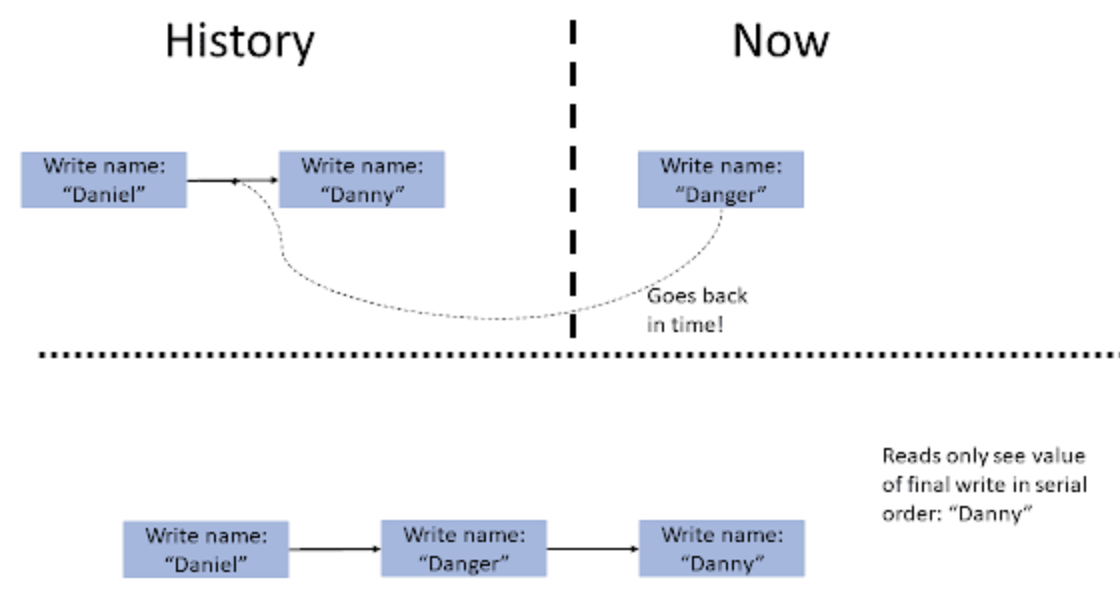

+### The Immortal write
+<img src=immortalWrite.png width=500>
+

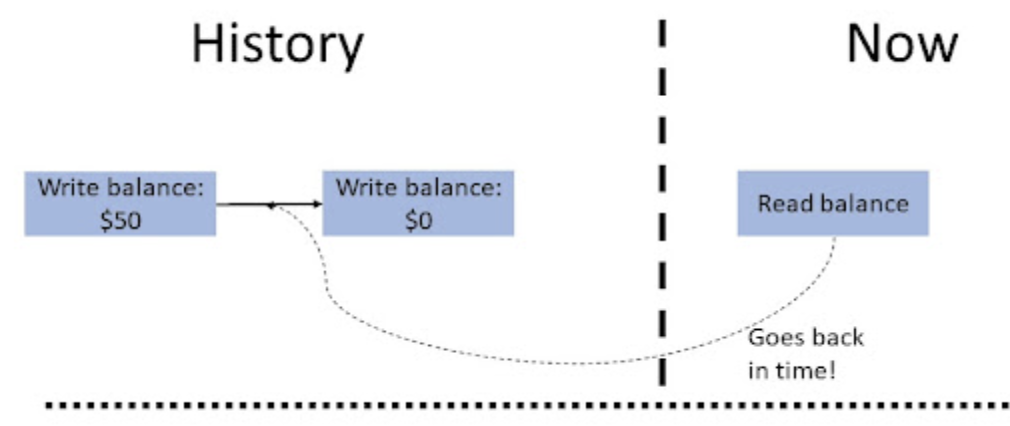

+### The Stale Read
+<img src=staleRead.png width=500>
+
+### The Stale Read
+<img src=staleRead.png width=500>
+

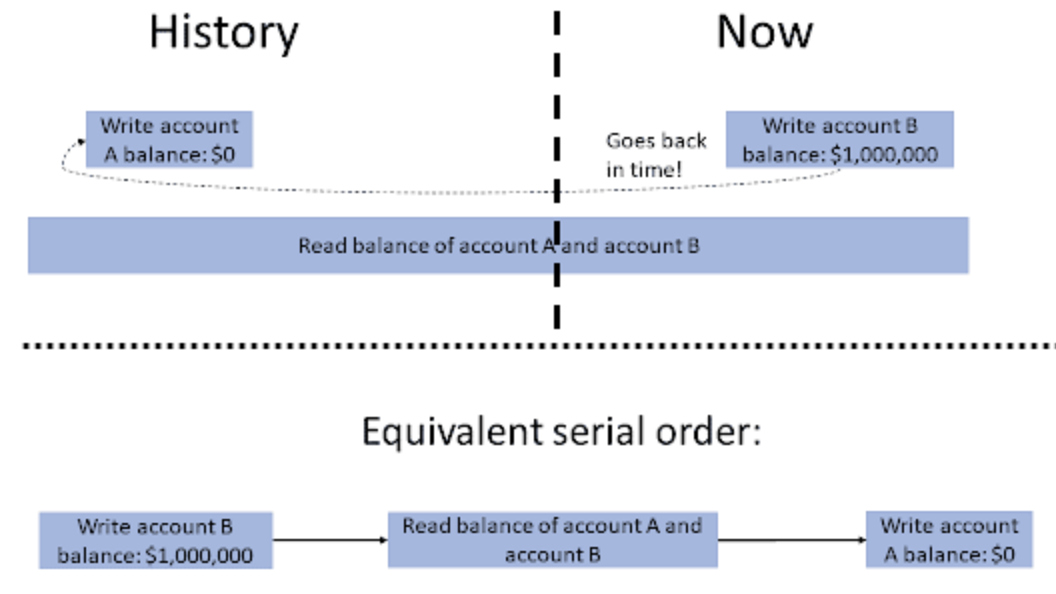

+### The Causal Reverse
+<img src=causalReverse.png width=500>
+
+*Strict serializability* prevents the all of these.

notes/salt.md

@@ -120,3 +120,33 @@ These two ensure uncommitted writes keep locks until all prior read locks also r

 ## Comments

+
+
+
+//=====================================================================
+
+# Correctness Anomalies Under Serializable Isolation
+
+Background: serializability guarantees an execute (a schedule)
+equivalent to a serial schedule, but this serial schedule does not
+have to be the ordering that actually occurred in real time (wall
+clock time).
+
+Background: *one-copy serilizability* (1SR):
+```
+...either ... will be ordered first in the equivalent serial order. Whichever transaction is second --- when it reads the balance --- it must read the value written by the first transaction
+```
+
+### The Immortal write
+<img src=immortalWrite.png width=500>
+
+### The Stale Read
+<img src=staleRead.png width=500>
+
+### The Stale Read
+<img src=staleRead.png width=500>
+
+### The Causal Reverse
+<img src=causalReverse.png width=500>
+
+*Strict serializability* prevents the all of these.

notes/salt.md~

+# SALT
+
+"offering atomicity and isolation at the same granularity is the very reason why ACID
+transactions are ill-equipped .....(performance vs programmability)"
+
+**Pareto Principle:** 80% of effects from 20% of causes
+
+-splitting ACID transactions up very good for concurrency
+ - bad for isolation
+- key issue is to provide isolation at a finer granularity, same atomicity
+  - nested transactions give subtrans' atomicity, isolate entire thing
+
+## Background
+
+ANSI iso levels:
+- read-uncommitted
+- read-committed (assumed goal for paper)
+- repeatable read
+- serializable
+
+Issues:
+- dirty writes: overwrite uncomitted
+- dirty reads: read from uncommitted
+- non-repeatable reads
+- phantom
+
+## Big Things
+- BASE transactions
+- salt isolation
+- clever names
+
+## BASE transactions
+  - **alkaline** subtransactions
+    - no other transactions can see state of *uncommitted alkaline subtrans*
+    - **committed** alk subtrans state viewable by other BASE or alkaline transactions
+    - *not visible* (to ACID?) until entire BASE commit.
+  - **salt isolation** allows control of internal states visibility (among other BASE transactions)
+  - each alkaline sub has associated *exception*
+  - *BASE transactions look like ACID transactions to other ACID transactions*
+  - **accepted** once any alkaline trans commits,
+    - accepted implies commit of entire BASE
+    - i.e. all operations successfully executed *or bypassed because of some exception*
+  - aborted only if they encounter an error before the transaction is accepted (unlike ACID)
+
+## Isolation
+
+*"If two operations in different transactions conflict, then the temporal dependency
+    that exists between the earlier and the later of these operations  must extend to the
+    entire transaction"* (allows SALT to work w/ different isolation levels)
+
+*Isolation:* Let Q be the set of operation types {*read*, *range-read*, *write*} and let L and S
+be subsets of Q . Further, let $o_1$ in $txn_1$ and $o_2$ in $txn_2$, be two operations, respectively
+of type $T_1$ ∈ L and $T_2$ ∈ S , that access the same object in a conflicting
+(i.e. non read-read) manner. **If $o_1$ completes before $o_2$ starts, then $txn_1$ must decide
+before $o_2$ starts.**
+
+Isolation property holds if at least one is ACID, or both are alkaline.
+
+
+![sets](saltSets.png)
+
+
+## Salt Isolation
+**Salt Isolation**:
+The Isolation property holds as long as (a) at least one of txn<sub>1</sub> and
+txn<sub>2</sub> is an ACID transaction or (b) both txn<sub>1</sub> and txn<sub>2</sub> are alkaline
+subtransactions.
+
+So:
+- ACID transactions isolated from all other
+- Alkaline subtrans isolated from ACID and other alkaline
+- BASE expose states at alkaline boundaries to other BASE
+
+
+- Design
+  - locks (because high contention)
+    - type
+      - ACID - conflict with alkaline and saline
+      - alkaline - conflict w/ ACID and other alkaline
+      - saline: conflict with ACID locks (except for read/read) only
+    - lock duration
+      - *long term* (life of trans, 2PL)
+      - *short-term* (just the op)
+    - acquire only an alkaline lock at operation start
+      - “downgrade” it to saline at end of subtransaction, hold until after the end of the BASE transaction.
+  - no multi-version concurrency
+
+![sets](saltConcurrent.png)
+
+## Indirect Dirty Reads
+<p>
+
+![fig4](saltFig4.png)
+<p>
+Fixed by:
+
+- **Read-after-write across transactions** A BASE transaction B<sub>r</sub> that reads a value x, which has been written by another BASE<sub>w</sub> transaction, cannot release its saline lock on x until B<sub>w</sub> has released its own saline lock on x.
+
+- **Write-after-read within a transaction** An operation O<sub>w</sub> that writes a value x cannot
+  release its saline lock on x until all previous read operations within the **same** BASE
+  transaction have released their saline locks on their respective objects.
+
+These two ensure uncommitted writes keep locks until all prior read locks also released.
+
+<p>
+
+## Forward Logging
+- after BASE knows it will commit (because a subsaline committed), log entire BASE
+- prevents cascades that would have occurred because of saline visibility
+
+### Banking, again
+
+![fig1](saltAcidApp.png)
+![banking](saltBanking.png)
+
+## Performance
+
+![saltPerf1](saltPerf1.png)
+
+![saltPerf2](saltPerf2.png)
+
+
+## Comments
+
