auto

notes/hat.md

@@ -11,30 +11,29 @@ Correctness anomalies
     - 1SR “one-copy serializability”
         - any read will return the most recent write to that data item, regardless of which replicas are read or written
         - doesn’t fix all problems
-    -

 ## The Anomalies

-the immortal write -
+*the immortal write* -

 ![](https://paper-attachments.dropbox.com/s_9C40D1E627431C359DFC050423F865DB110CEF11D9FA101F15E75C20CDD3C4D3_1639005186338_image.png)

 - tempting to leverage time travel to create an immortal blind write, which enables strightforward conflict resolution without violating the serializability guarantee

-the stale read
+*the stale read* -

 ![](https://paper-attachments.dropbox.com/s_9C40D1E627431C359DFC050423F865DB110CEF11D9FA101F15E75C20CDD3C4D3_1639005248966_image.png)

 - in single-server system little incentive to read older versions
 - in distributed system, most recent version costs latency

-the causal reverse
+*the causal reverse* -

 ![](https://paper-attachments.dropbox.com/s_9C40D1E627431C359DFC050423F865DB110CEF11D9FA101F15E75C20CDD3C4D3_1639023882254_image.png)

 - serialization order doesn’t respect potential causality of non-conflicting writes (to different data, for example)

-SumUp
+### SumUp

 - all can occur in 1SR
 - none occur w/ strict serializability,
@@ -43,14 +42,13 @@ SumUp


 # Highly Available
-
 ```
  authors: Peter Bailis, Alan Fekete, Ali Ghodsi, Joseph M. Hellerstein, Ion Stoica
     title: "HAT, not CAP: Towards Highly Available Transactions"
     where: HotOS 2013
 ```

-### Definitions, in the context of Partitions:
+### Definitions

 - **high availability:**
   - each user that can contact a non-failing server eventually receives
@@ -72,7 +70,7 @@ SumUp
 ```
 Read should not ever return '1', and shouldn't return '3' if T2 aborts

-"**dirty writes**"
+- "**dirty writes**"
 A *dirty write* occurs when one transaction overwrites a value that has previously been
 written by another still in-flight transaction. Why bad? Could violate consistency
 guarantees. Assume invariant *x == y*:
@@ -100,7 +98,7 @@ Both preserve consistency in isolation, but not w/ this schedule and dirty write
 - impl both w/ buffering

 ----
-### Unachievable isolation levels
+### Unachievable isolation levels with partitions:
 - snapshot isolation,
   - read from consistent cut
   - commit only if items from writeset not committed by another T since snapshot
@@ -130,7 +128,7 @@ violation of consistency, such as "x == y""
      T1: t = x;  y = t
      T2: t = y;  x = t
 ```
-Can happen w/ snapshot isolation.
+Can happen w/ snapshot isolation even w/o partitions.

 - Serializability:
   - optimistic requires global validation
@@ -148,6 +146,11 @@ Can happen w/ snapshot isolation.

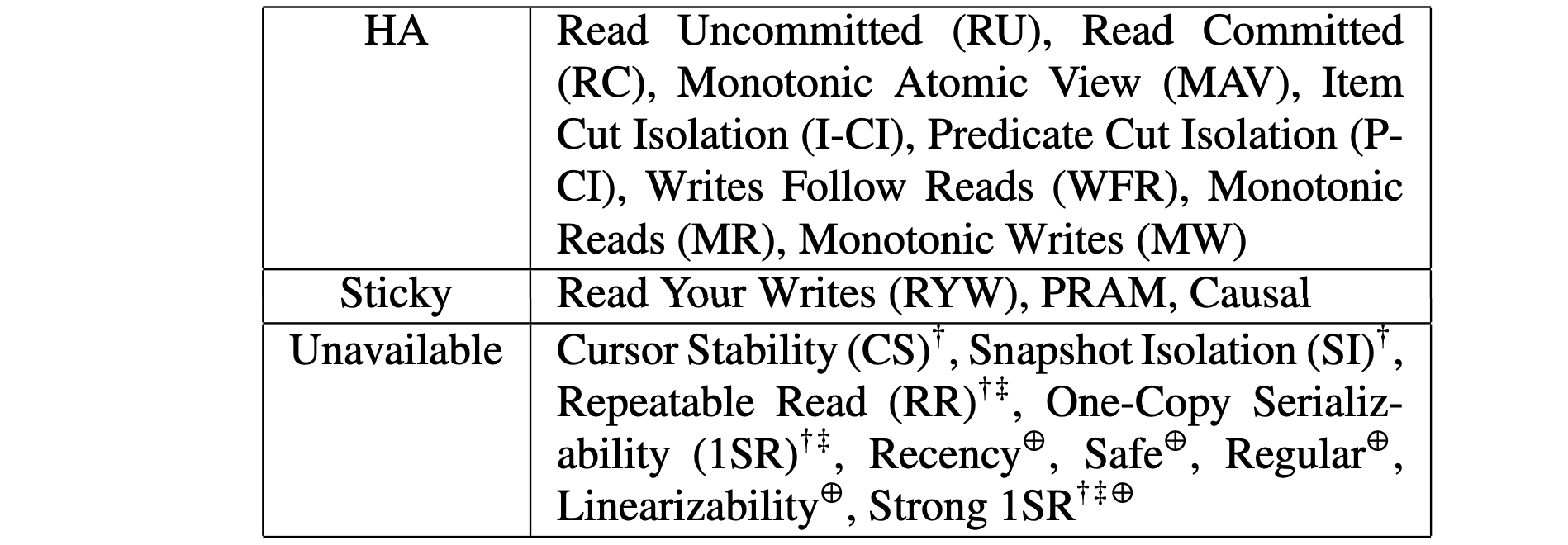

 ### HAT-compliant:

-![pic](hat.png)
+![pic](hat1.png)
+

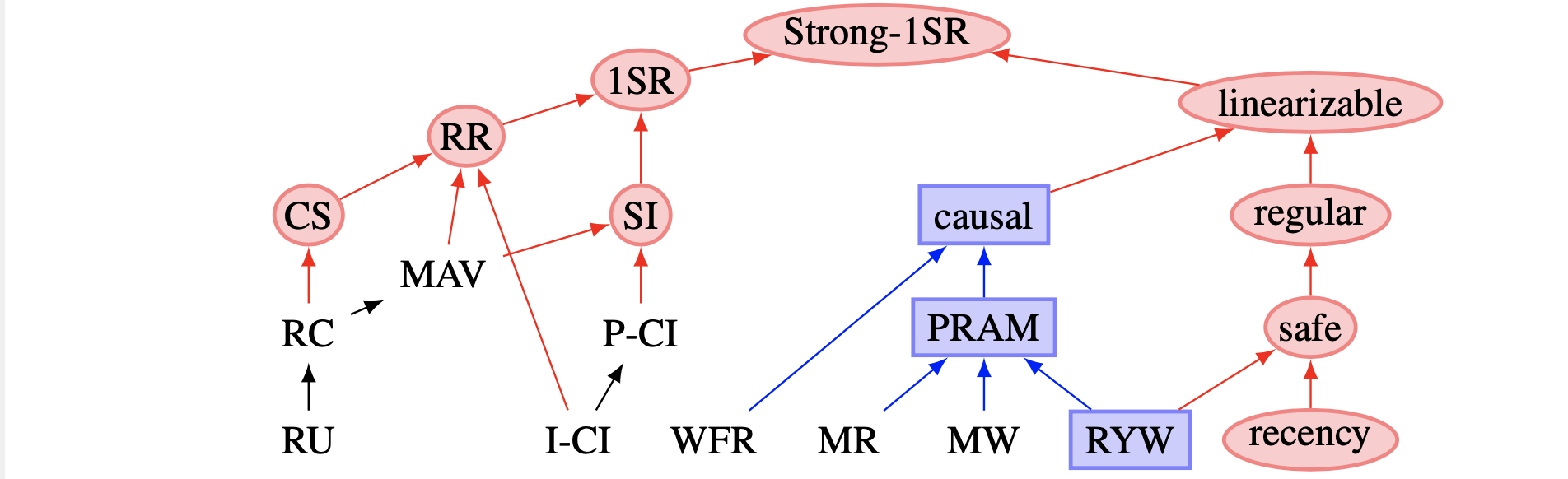

+### Partial ordering
+![pic](hat2.png)

+- Blue is sticky available
+- Red is unavailable
 ----
